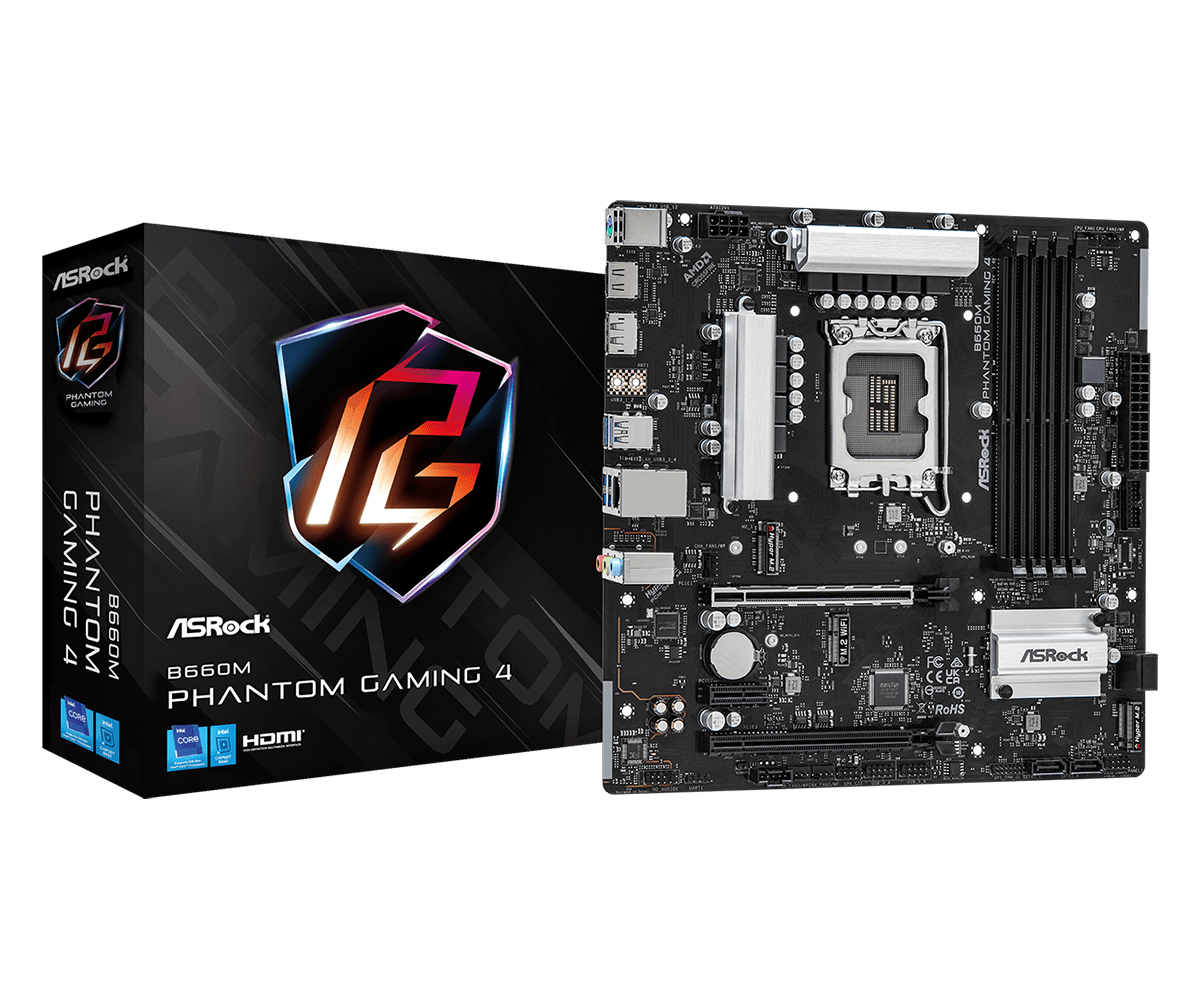

Genuine ASRock B660M PHANTOM GAMING 4 LGA 1700 DDR4 Micro ATX Intel Motherboard

Supports 12th Gen Intel Core Processors (LGA1700) 8 Phase Power Design Supports DDR4 5333MHz (OC)* 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 1 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 2 Hyper M.2 (PCIe Gen4 x4) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front) Specification : Model Brand ASRock Model B660M PHANTOM GAMING 4 Supported CPU CPU Socket Type LGA 1700 * Dedicated LGA1700 mounting bracket is required. CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors Chipsets Chipset Intel B660 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard DDR4 5333+(OC)* * Supports DDR4 3200 natively. Maximum Memory Supported 128GB Channel Supported Dual Channel Expansion Slots PCI Express 4.0 x16 1 x PCI Express 4.0 x16 * Supports NVMe SSD as boot disks. PCI Express 3.0 x16 1 x PCI Express 3.0 x16 * Supports NVMe SSD as boot disks. PCI Express x1 1 x PCI Express 3.0 x1 Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports Intel Optane Technology (M2_2 only). * Supports Intel Volume Management Device (VMD). * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. Intel Optane Ready Yes SATA RAID 0/1/5/10 Onboard Audio Audio Chipset Realtek ALC897 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Other Connectors 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. Physical Spec Form Factor Micro ATX Dimensions (W x L) 9.6_ x 9.6_ Power Pin 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) Windows Compatibility Windows 11 Supported
