Genuine Sabrent 500GB Rocket Nvme PCIe Gen4 x 4 M.2 2280 Internal SSD With Heatsink SB ROCKET NVMe4 HTSK 500

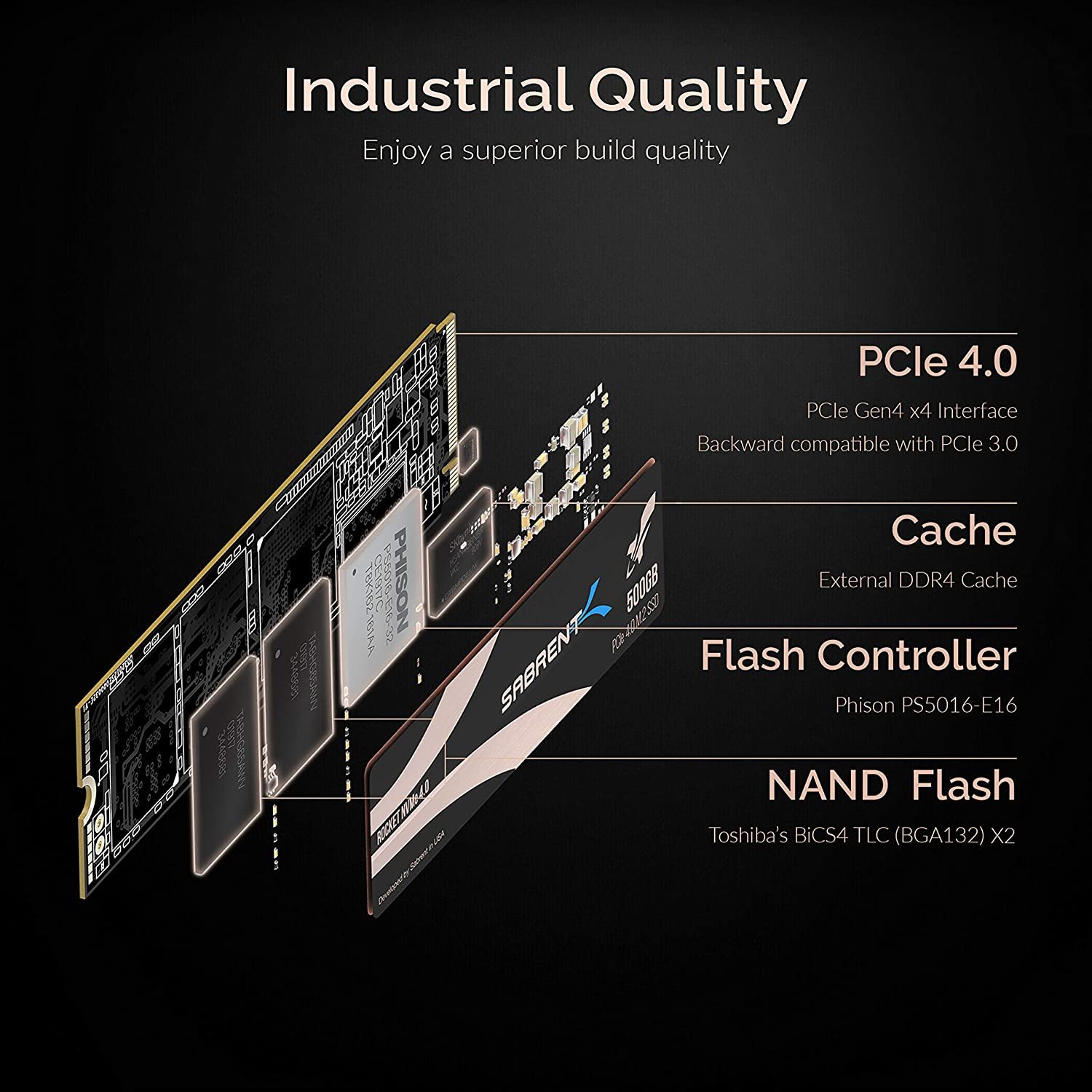

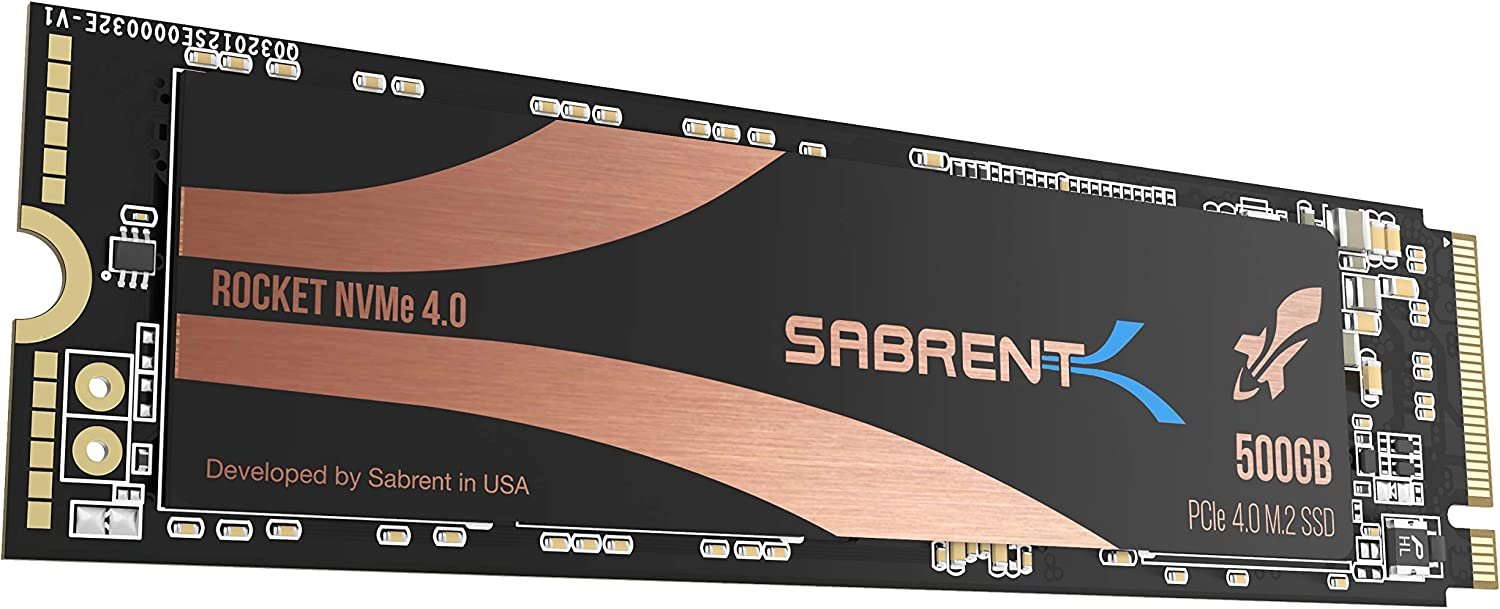

The Sabrent 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD Maximum Performance Solid State Drive With Heatsink (SB-ROCKET-NVMe4-HTSK-500) delivers all the advantages of flash disk technology with PCIe Gen4.0 x4 interface. Based on Toshibas BiCS4 96L TLC NAND Flash memory, its performance speeds can reach up to 5000 MB/s (read) and 2500 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 2500 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems. The Sabrent 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD was designed using PCIe 4.0 which allows for speeds of up to 5000 MB/s (read) and 2500 MB/s (write), significantly faster than PCIe 3.0. Note: In order to take advantage of these speeds, a PCIe Gen4 motherboard is REQUIRED. Otherwise it will be at pcie gen 3 speed at max of 3500MB/s. The Sabrent 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD is backward compatible with PCIe 3.0. Using a Gen 3 PCIe motherboard will enable the user to reach speeds of up to 3400 MB/s (read) and 2000 MB/s (write). When installing any NVMe PCIe 4.0 SSD directly onto a PCIe Gen4 Motherboard a Heatsink is required to dissipate the heat generated by the drives extreme speed levels to avoid thermal throttling and maximize performance. This Sabrent 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD comes with the Sabrent M.2 2280 SSD Rocket Heatsink preinstalled. Features: ?˜ NVMe M.2 PCIe Gen4 x4 Interface. ?˜ PCIe 4.0 Compliant / NVMe 1.3 Compliant. ?˜ Power Management Support for APST / ASPM / L1.2. ?˜ Supports SMART and TRIM commands. ?˜ Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface. ?˜ Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision. ?˜ Preinstalled Rocket NVMe Heatsink. ?˜ Upgradeable Firmware. Package contents: ?˜ 500GB Rocket Nvme PCIe 4.0 M.2 2280 SSD with Heatsink. ?˜ User Manual. Specification : Model # SB-ROCKET-NVMe4-HTSK-500 Capacity 500GB NAND 3D BiCS4 Controller PS5016-E16 Interface PCIe Gen4 x 4 Certifications CE,FCC,BSMI,RoHS,VCCI Max Sequential Read 5000 (MB/s) Max Sequential Write 2500 (MB/s) Random 4K QD32 (IOPS) Read*1 400K Random 4K QD32 (IOPS) Write*1 550K Random 4K QD32 (IOPS) Read*2 400k Random 4K QD32 (IOPS) Write*2 500K Power Consumption R/W 6.2 / 4.6 Power Supply 3.3V Form Factor M.2 2280 Height 3.7mm Width 22mm Length 80mm Operating Temperature 0~70 ?„C Storage Temperature -40~85 ?„C MTBF 17,00,000 Shock Resistant 1500G Data Correction LDPC HeatSink Yes Warranty 5 years with registration TBW 850
