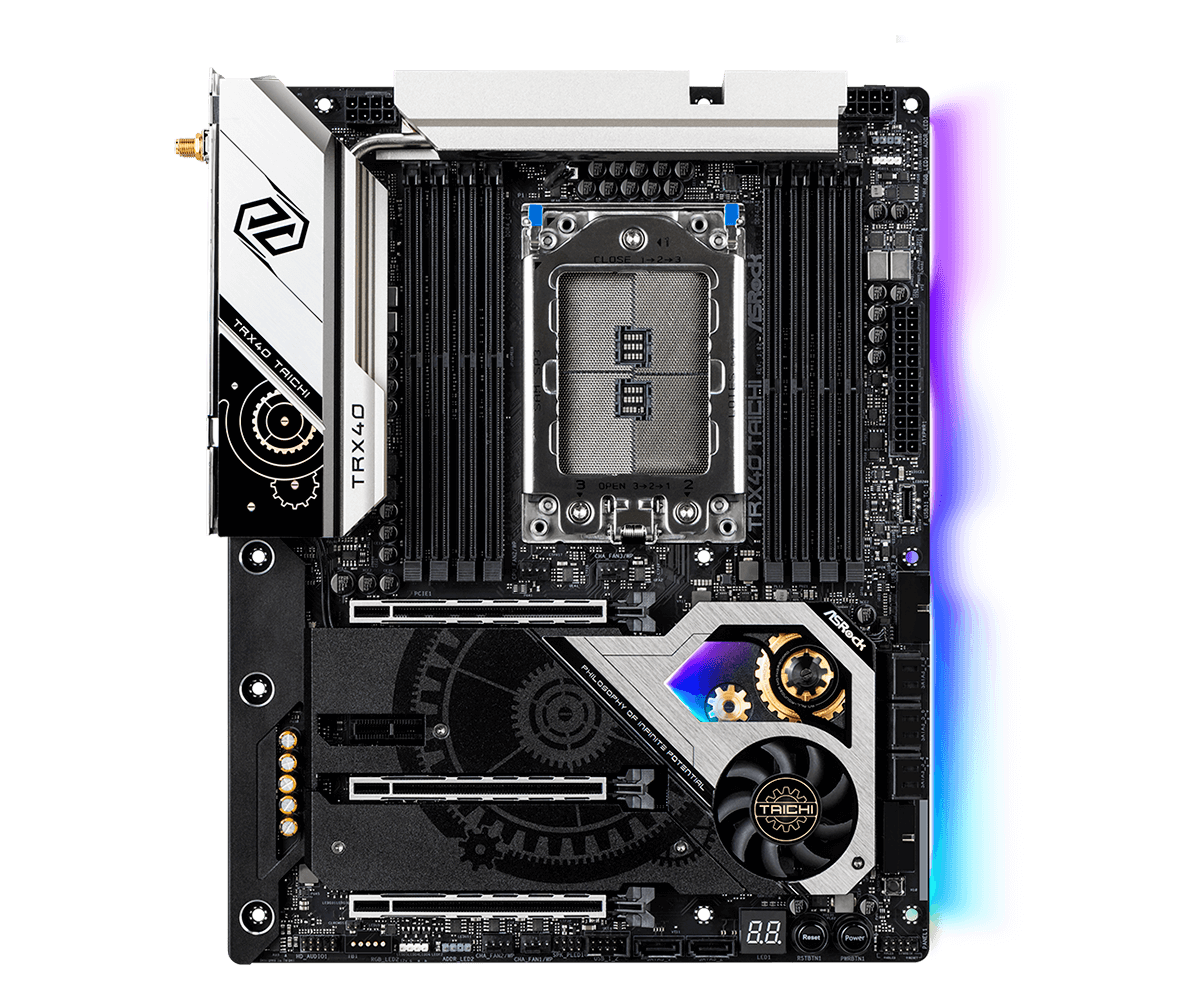

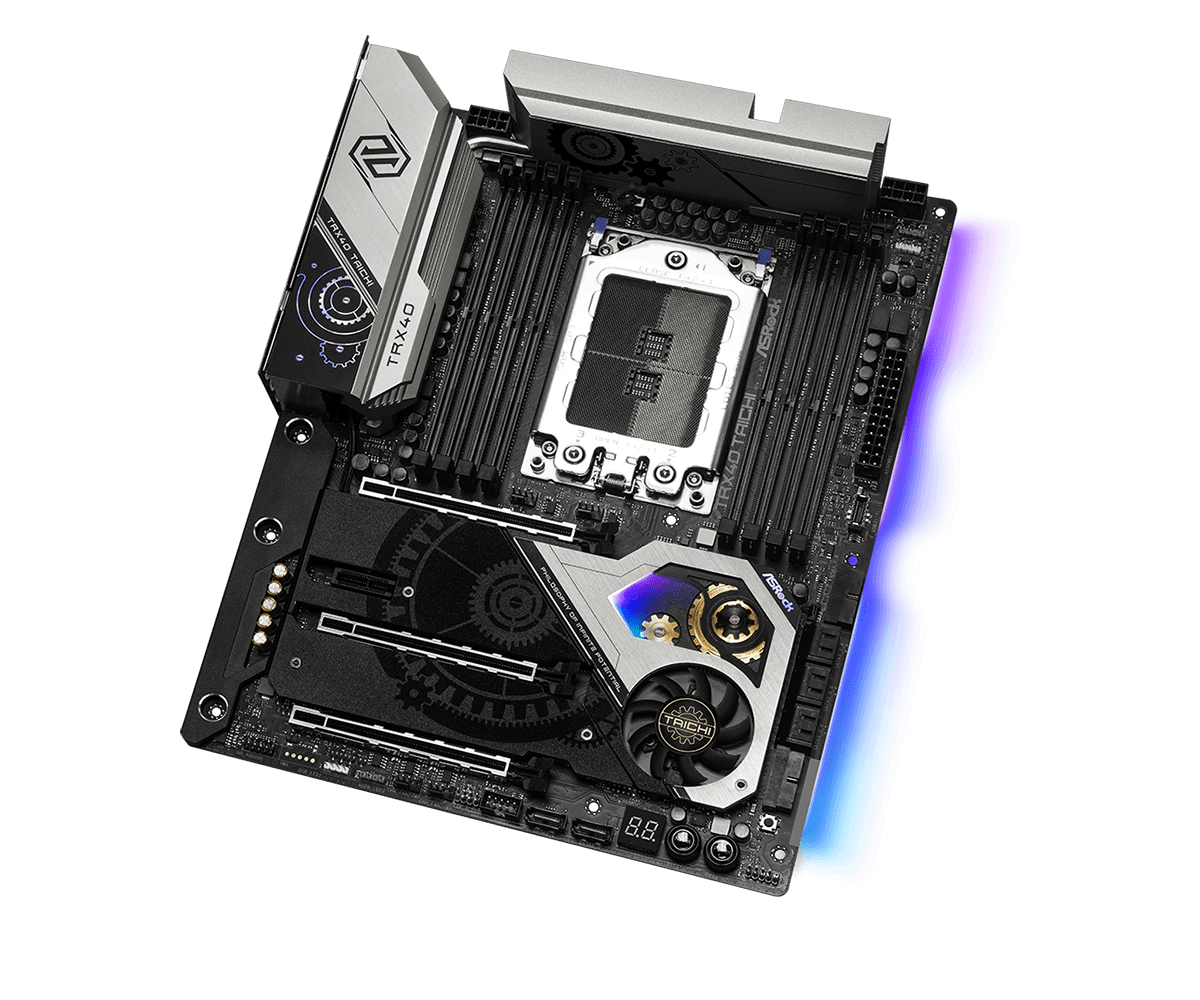

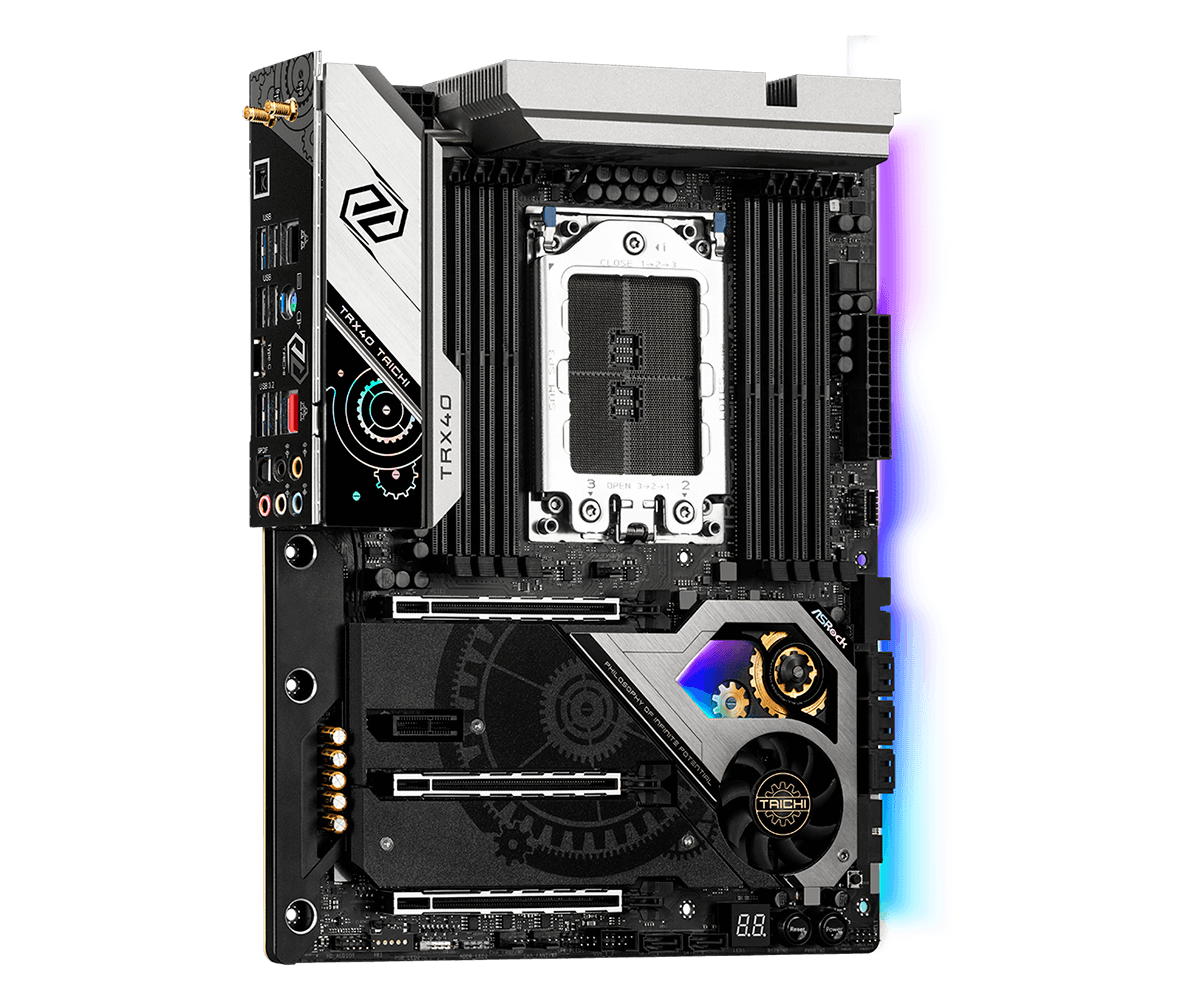

Original Asrock TRX40 TAICHI AMD TRX40 ATX Motherboard

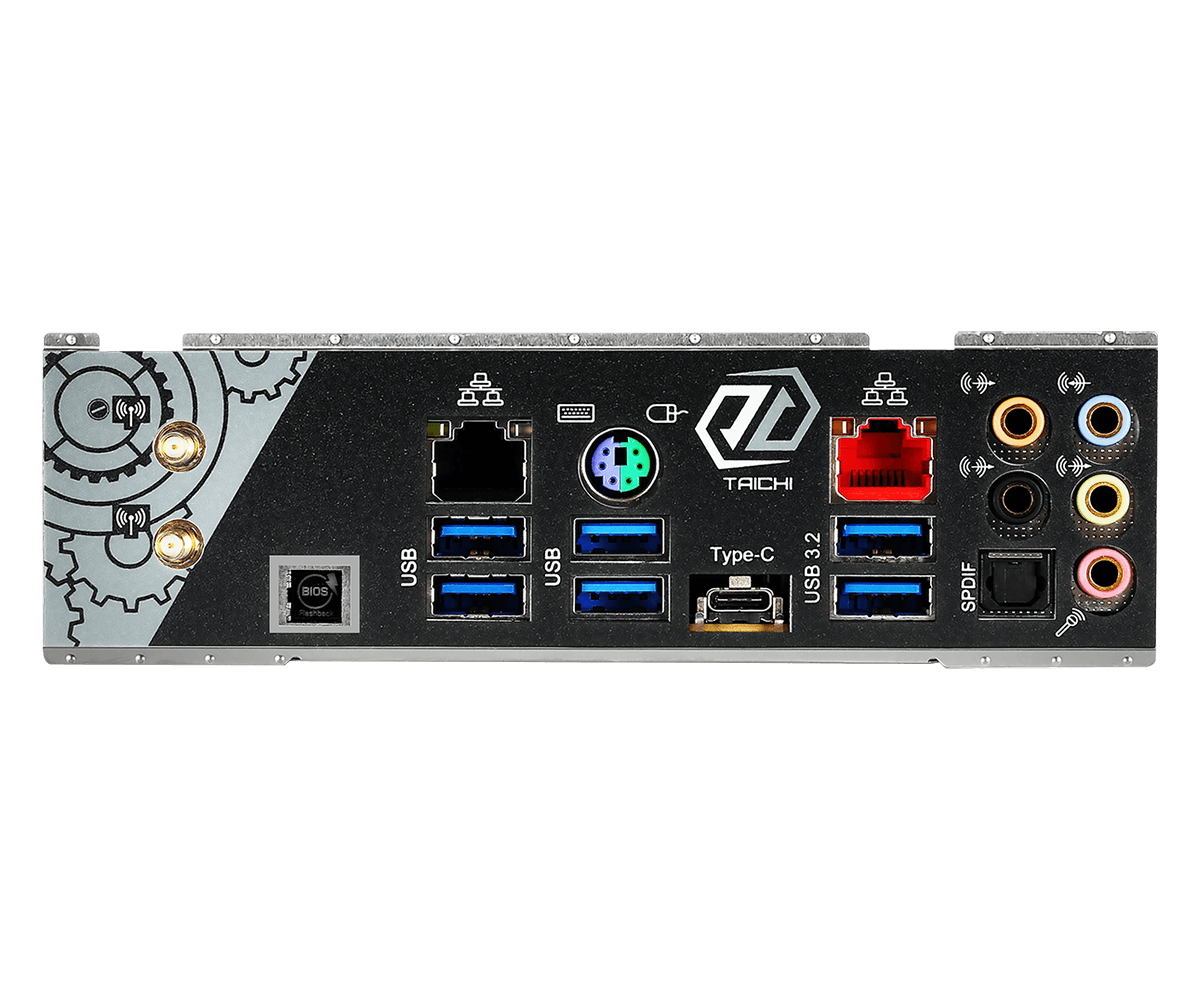

Unique Feature ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) – ASRock USB 3.2 Gen2x2 Type C Port (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 90A Power Choke – 90A Dr.MOS – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) – Combo Caps (Nichicon 12K Black Caps) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – Matte Black PCB – High Density Glass Fabric PCB – 8 Layer PCB – 2oz Copper PCB 2.5G LAN Intel 802.11ax WiFi ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU – Supports AMD Socket sTRX4 – Intersil Digital PWM – 16 Power Phase design – Supports ASRock Hyper BCLK Engine II Chipset – AMD TRX40 Memory – Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM) – Max. capacity of system memory: 256GB – 15 ?«_ Gold Contact in DIMM Slots BIOS – 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment Graphics – n/a Audio – 7.1 CH HD Audio (Realtek ALC4050H+ALC1220) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound 4 – Nichicon Fine Gold Series Audio Caps – NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB isolate shielding – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15 ?«_ Gold Audio Connector – Supports DTS Connect LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG): – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE 1 x Intel Gigabit LAN 10/100/1000 Mb/s (1 x Intel I211AT): – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE Wireless LAN – Intel 802.11ax WiFi Module – Supports IEEE 802.11a/b/g/ax – Supports Dual-Band (2.4/5 GHz) – Supports WiFi6 802.11ax (2.4Gbps) – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.0 + High speed class II – Supports MU-MIMO Slots – 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x16 (PCIE4)* – 1 x PCI Express 4.0 x1 Slot – Supports AMD 3-Way CrossFireX and CrossFireX – Supports NVIDIA 3-Way SLI and SLI – Supports NVIDIA NVLink with dual NVIDIA GeForce RTX series graphics cards** – 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ax module – 15 ?«_ Gold Contact in VGA PCIe Slots (PCIE1, PCIE3 and PCIE4) *Supports NVMe SSD as boot disks **NVIDIA NVLink Bridge does not come with the package. Please purchase it from NVIDIA if necessary. Storage – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)* – 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) *Supports NVMe SSD as boot disks Connector – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15 ?«_ Gold Audio Connector) – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED – 1 x Clear CMOS Button *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O – 2 x Antenna Ports (on I/O Panel Shield) – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Button – HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_1_2 ports. Software and UEFI Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories – Quick Installation Guide, Support CD – 4 x SATA Data Cables – 1 x ASRock SLI_HB_Bridge_2S Card – 1 x ASRock HYPER QUAD M.2 CARD – 1 x ASRock WiFi 2.4/5 GHz Antenna – 1 x ASRock Screwdriver – 6 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets Hardware Monitor – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB – 2oz Copper PCB OS – Microsoft Windows 10 64-bit
