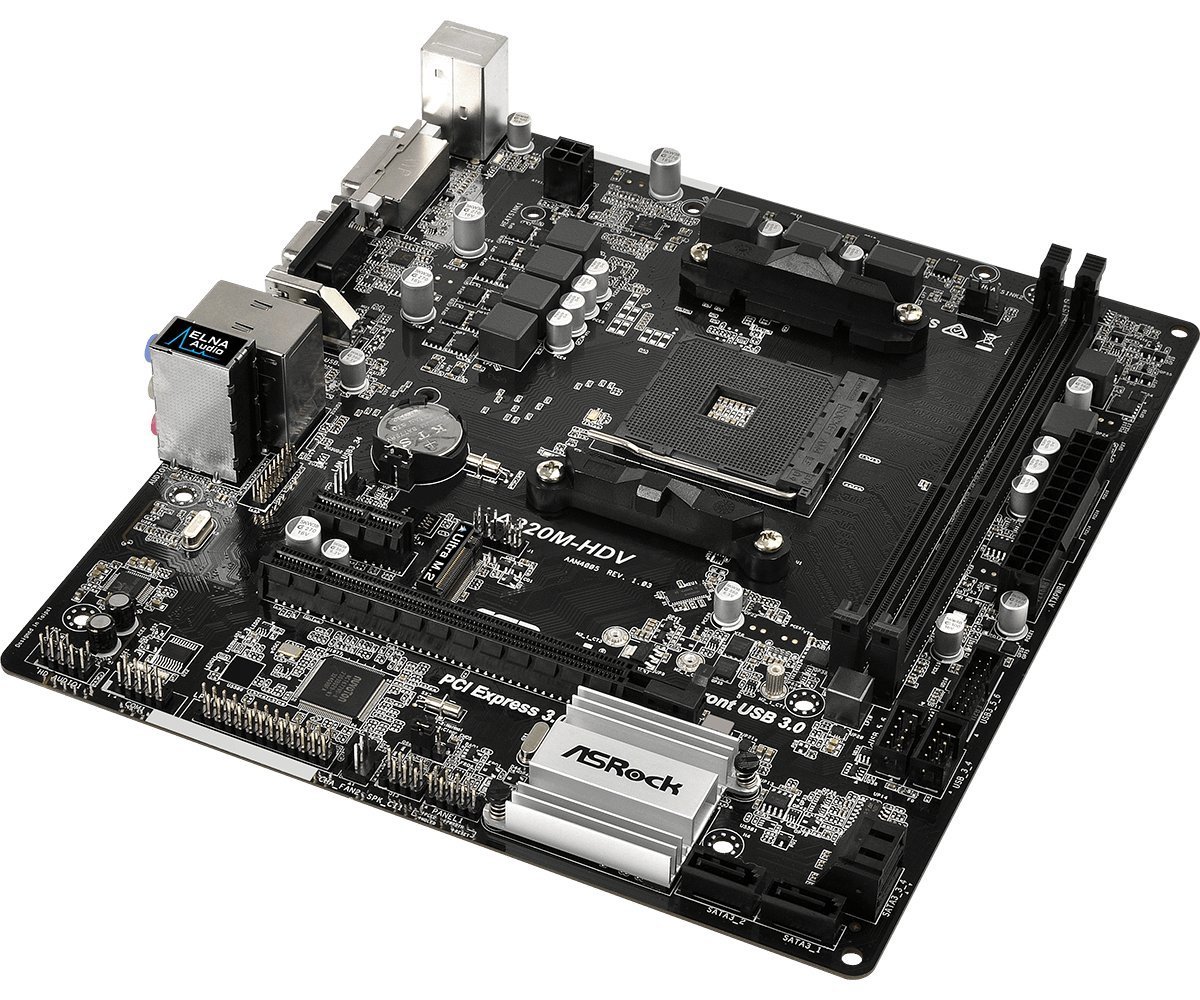

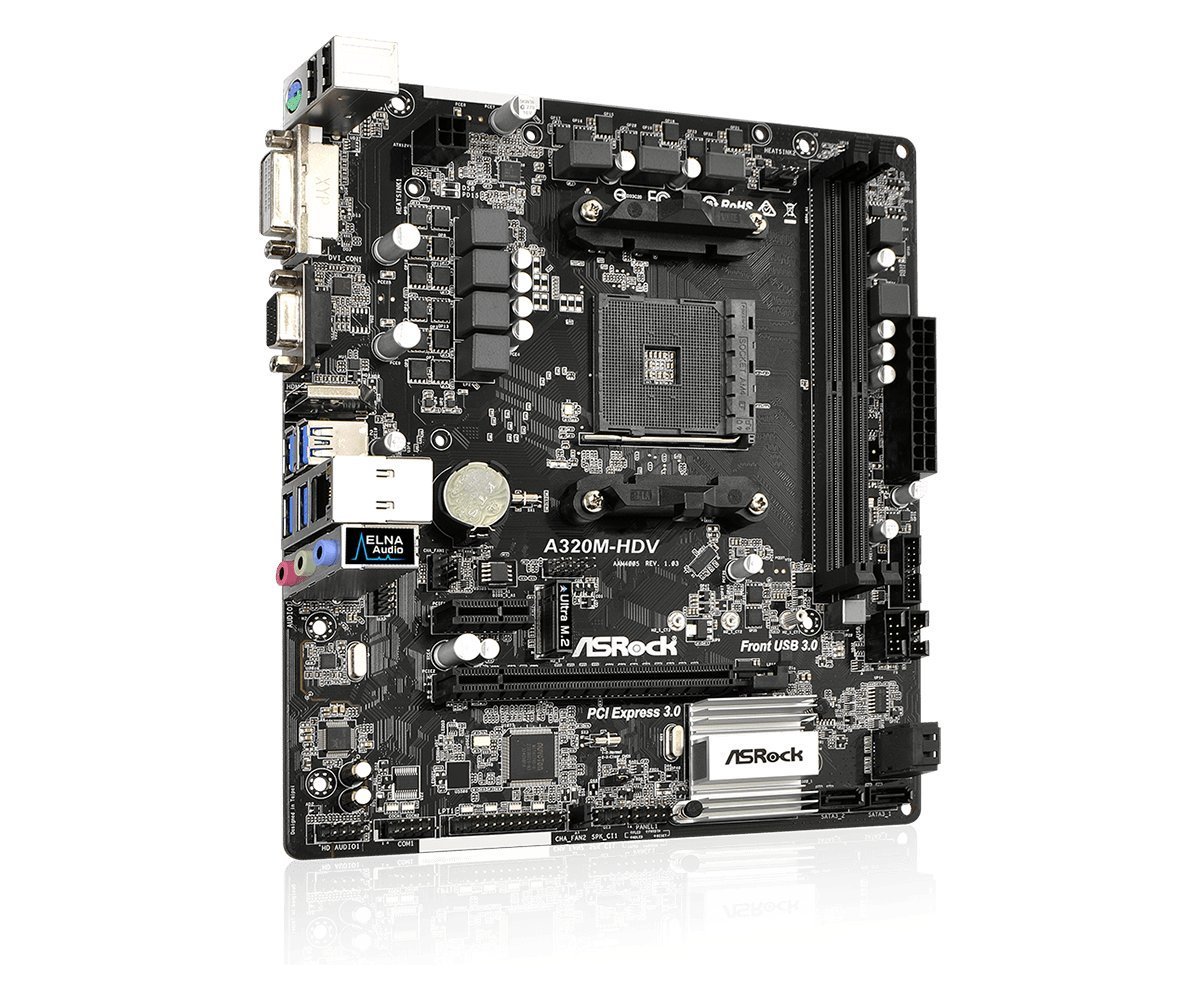

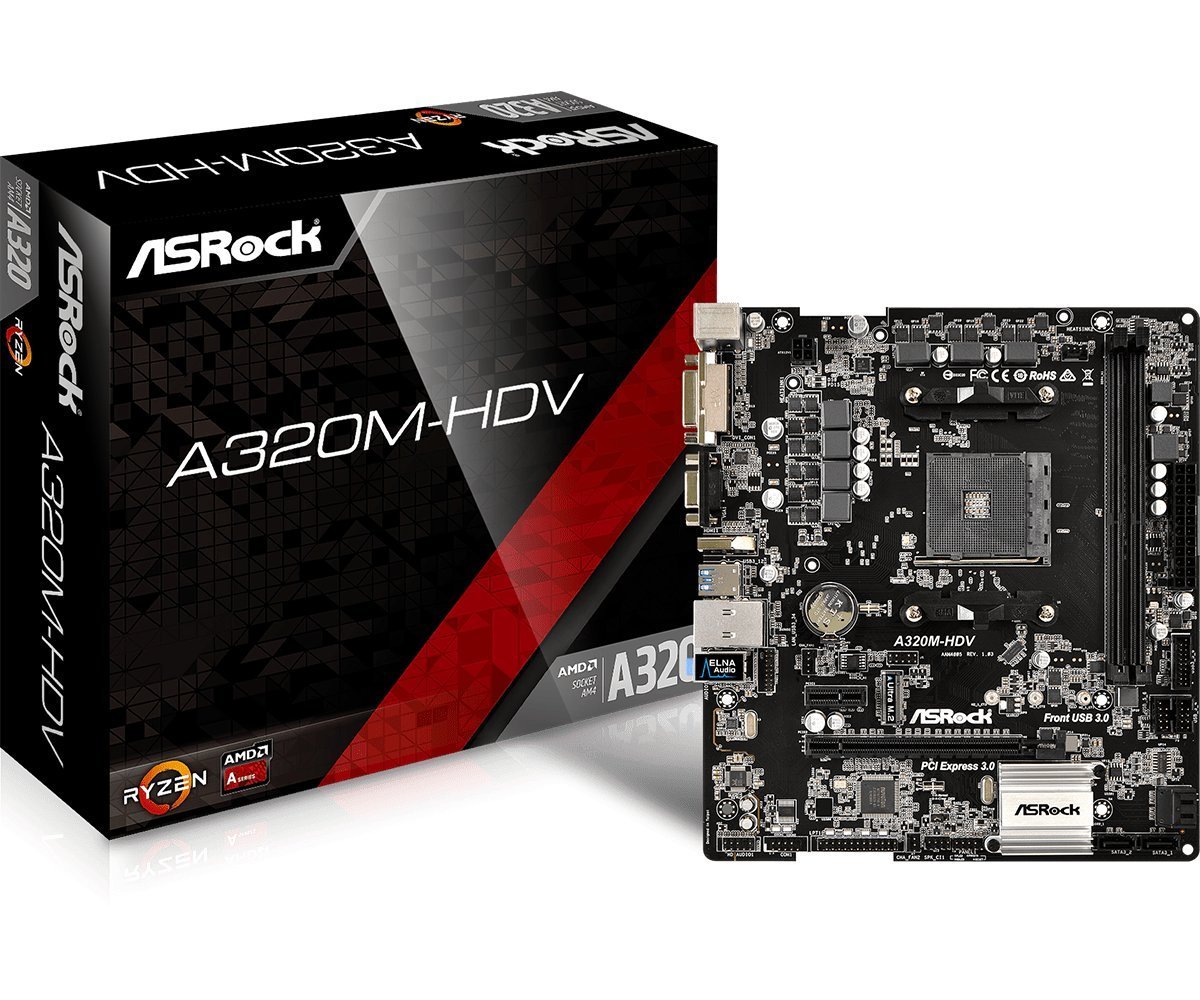

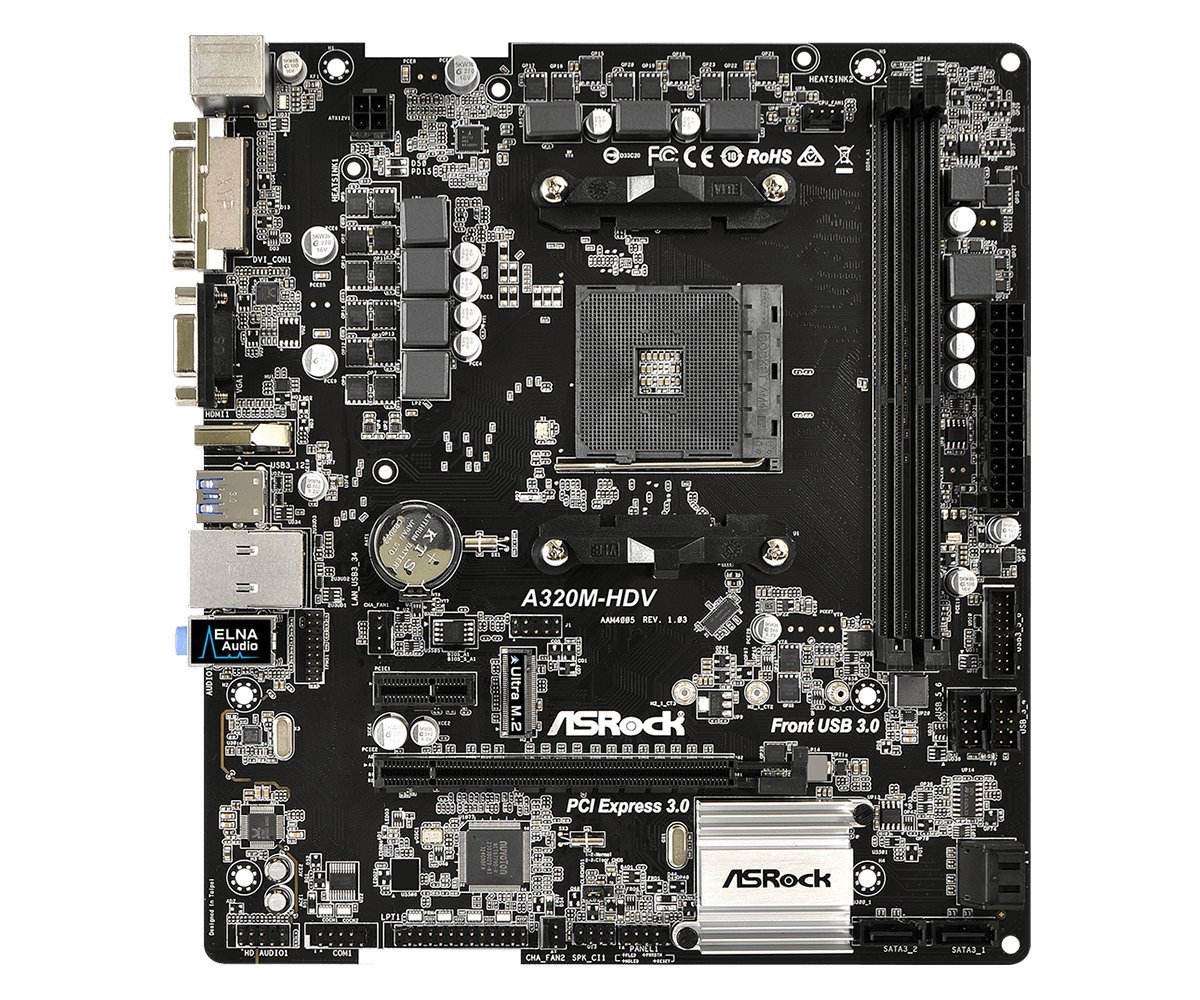

Genuine ASRock A320M HDV AM4 Micro ATX AMD Motherboard

ASRock A320M-HDV AM4 Micro ATX AMD Motherboard Model Brand ASRock Model A320M-HDV Supported CPU CPU Socket Type AM4 CPU Type A-Series / Ryzen Series Chipsets Chipset AMD Promontory A320 Memory Number of Memory Slots 2 ?Œ ?‘288pin Memory Standard Ryzen series CPUs support DDR4 3200 (OC)/ 2933(OC)/ 2667/ 2400/ 2133 * 7th Gen A-Series APUs support DDR4 2400/ 2133 ** * Please refer to Memory Support List on ASRock ?ªs website for more information. ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Maximum Memory Supported 32GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 AMD Ryzen series CPUs ?’ 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD 7th A-Series APUs ?’ 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* * Supports NVMe SSD as boot disks PCI Express x1 AMD 7th A-Series APUs ?’ 1 x PCI Express 2.0 x1 Slot Storage Devices SATA 6Gb/s 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug M.2 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16Gb/s) (with A-Series APU)* *Supports ASRock U.2 Kit Supports NVMe SSD as boot disks SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Integrated AMD Radeon R-Series Graphics in A-series APU* DirectX 12, Pixel Shader 5.0 Max. shared memory 2GB Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096 ?Œ ?‘2160) @ 24Hz / (3840 ?Œ ?‘2160) @ 30Hz Supports DVI-D with max. resolution up to 1920 ?Œ ?‘1200 @ 60Hz Supports D-Sub with max. resolution up to 2048 ?Œ ?‘1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports *Actual support may vary by CPU Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Realtek 8111GR Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x D-Sub Port 1 x DVI-D Port HDMI 1 x HDMI RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) USB 3.0 4 x USB 3.0 Ports (Supports ESD Protection) USB 1.1/2.0 2 x USB 2.0 Ports (Supports ESD Protection) Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection) Other Connectors 1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)* 1 x Front Panel Audio Connector *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. Physical Spec Form Factor Micro ATX Dimensions (W x L) 9.1_ x 8.1_ Power Pin 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector Features Features Unique Feature ASRock Super Alloy ?’ High Density Glass Fabric PCB ?’ Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS ?’ 128MB AMI UEFI Legal BIOS with GUI support ?’ Supports Plug and Play ?’ ACPI 5.1 compliance wake up events ?’ Supports jumperfree ?’ SMBIOS 2.3 support ?’ DRAM Voltage multi-adjustment Software ?’ ASRock APP Charger ?’ ASRock XFast LAN* *These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI ?’ ASRock Full HD UEFI ?’ ASRock Instant Flash ?’ ASRock Internet Flash ?’ ASRock Crashless BIOS ?’ ASRock Easy RAID Installer Support CD ?’ Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor ?’ CPU/Chassis temperature sensing ?’ CPU/Chassis Fan Tachometer ?’ CPU/Chassis Quiet Fan ?’ CPU/Chassis Fan multi-speed control ?’ CASE OPEN detection ?’ Voltage monitoring: 12V, 5V, 3.3V, Vcore OS ?’ Microsoft Windows 10 64-bit* *For the updated Windows 10 driver, please visit ASRock ?ªs website for details. Certifications ?’ FCC, CE, WHQL ?’ ErP/EuP ready (ErP/EuP ready power supply is required) Packaging Package Contents Accessories ?’ Quick Installation Guide, Support CD, I/O Shield ?’ 2 x SATA Data Cables ?’ 1 x Screw for M.2 Socket
